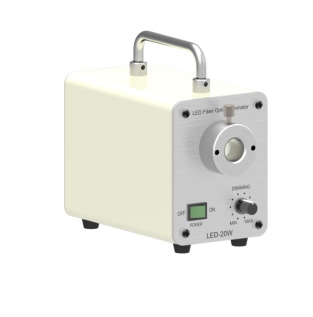

Product features

l High-quality, single chip high-power LED or COB-LED is adopted, which can provide high energy efficiency, color temperature stable.

l LED cooling structure to do the optimal design, built-in low-noise fan, making the heat can be effectively distributed, and the use of insulation materials to prevent the heat transfer, the shell temperature is low, the fiber insertion site temperature is very low.

l Shell is made of aluminum material, the internal structure of reasonable design, stable structure

l Single screw fiber patented structure, easy to operate, fiber lock solid easy to loose

l The driving circuit is high efficiency, which can provide continuous stepless dimming ,without stroboflash, the color temperature is stable

l With multiple mounting bracket for many brand

l Can be instantly turned on and off, no cooling time

l The external adapter can meet a variety of safety certifications

l Optional fiber focusing lens, so that the output light spot is uniform and sharp edges, contrasting observation

Technical parameter

l LED type：COB

l LED power： 15W

l LED color Temperature：6400K or customized

l Light output aperture：12mm

l LED life time：30,000h

l Cooling mode：Silent fan

l Adopter：100-240VAC/50-60Hz— 12VDC/2A

l Matching fiber bundle input/output aperture ：12mm/9mm

l Matching fiber bundle length：500mm

l Mounting bracket：Olympus、Nikon、Ф20-45mm column

Product Specifications

Accessories and optional accessories

Standard configuration：

LED fiber optical illuminator body      1       Power adopter      1

Optional accessories

Fiber bundle                   Focusing lens                    1pair

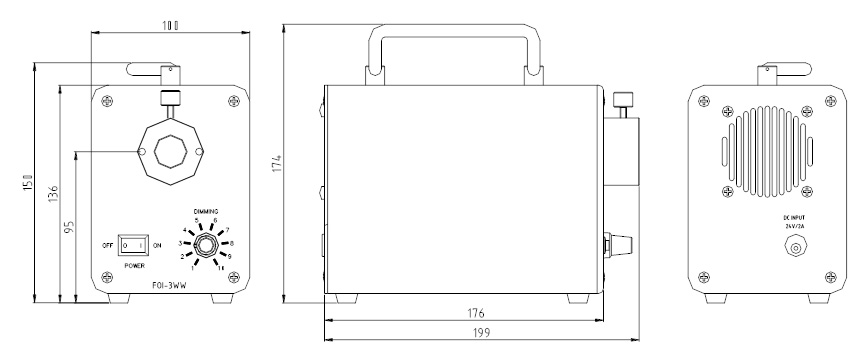

Dimensions
