Product Features

l  The use of the light guide plate technology, uniform light with excellent results, the unevenness of the entire light emitting surface of the small and the structure of thin

l  The shell is made of aluminum processing as a whole, strong and stable, and has good thermal performance

l   Light-emitting surface for toughened glass, have higher hardness, so have good wear resistance, not easy to scratch the glass surface and effect observation

l  Boundless design, the tempered glass surface without blocking structure, easy to move the object under observation in the entire light emitting surface

l  In the surface light source at both ends of the design of the installation slot, with a screw fixed

l  Using a wide voltage adapter power supply, can be adapted to use around the world

l  Technical Parameter

l  LED type：SMT

l  LED Color Temperature CCT：6400K typical or Custom

l  Method of LED Dimming: Linear Current Control(no Pulse Width Modulation)

l  Surface brightness unevenness：<5%

l  Power Input：100-240VAC/50-60Hz

l  Fixed slot width：5mm

Product Specification

Accessories and Options

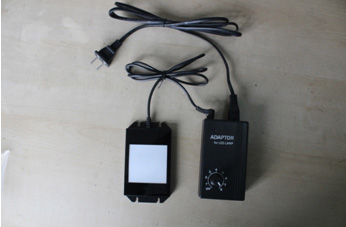

Standard configuration：

Light body                          1pcs         controller                                   1pce

Power Adapter          1pcs         M4X8Screws                                   5pcs

YK-N12

                                          YK-N14

                                          YK-N16

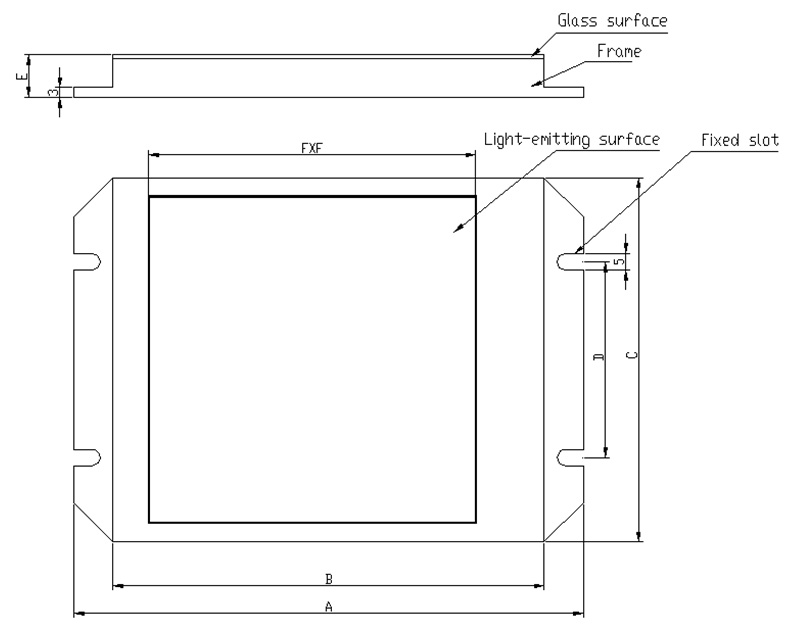

Dimensions（mm）
